The Machine

Keeping such a view, how to produce our same product qualifying higher quality in low cost for our customers.

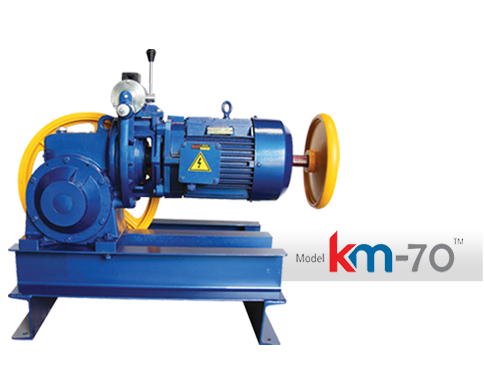

in lieu of this , we are proud to innovate and creat the new designed elevator traction machines having KM - 70 branded which is attracting affordable cost with supreme quality maintaining.

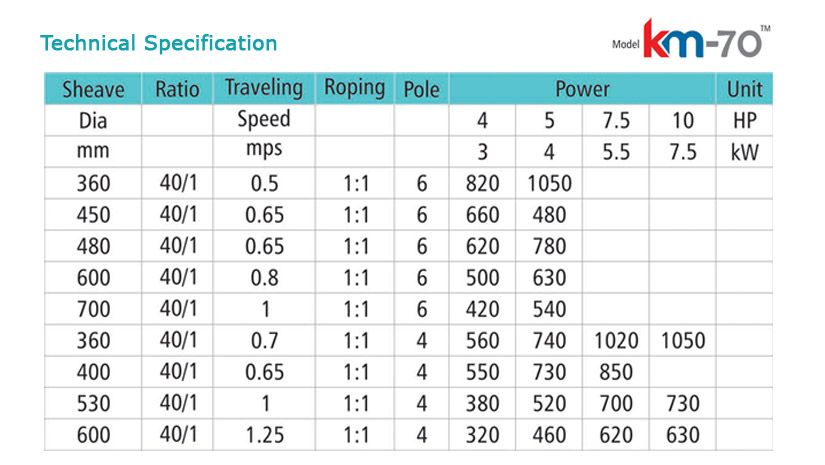

Technical Specification
Max. Static Load
3500 kg.
Brake Voltage
110 V DC
220 V DC
Oil Capacity
3 Ltr. Net
Machine Weight
370 Kg. (Approx)
Customized Model
KM-71S, KM71H
Available colour ( Metalic )
Comet Blue Pacific, Black
Lubrication
Use Synthetic Oil
Technical Features

Erection free machine.

Running smooth and vibration free due To dynamically balancing.

Easy to maintenance

Flexible design of pedestal.

Features

Worm wheel nickel base phosphorus bronze to achieve more life..

Graded cast iron.

Hardened alloy steel for shafts.

Brake solenoid electro-magnetic type with supply DC 110 & 220 Volts.

Perfect dimension.

Motor and Gear flexible for easy maintenance.

Low weight and easy installation.
